Controllers & Modules
Increase system functionality and capacity with specialized on-site modules.

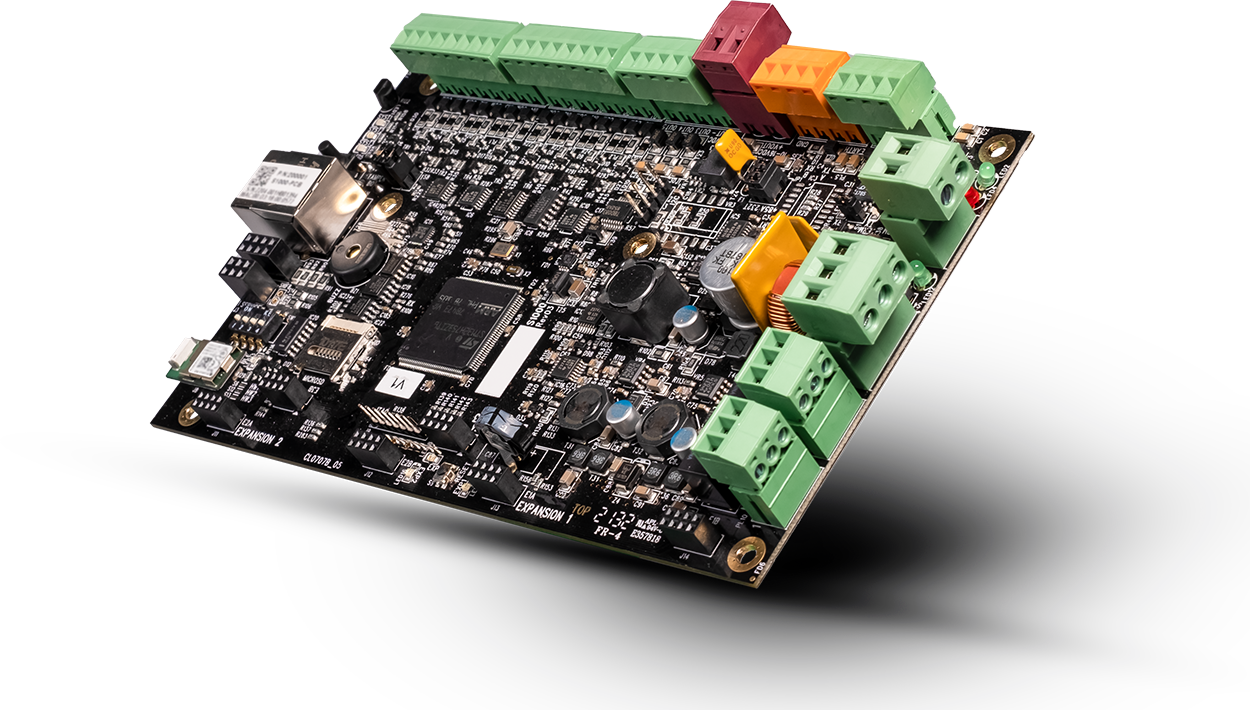

S1000 Smart Controller
Our intelligent S1000 Smart Controller is built with reliability in mind. Robust and compact it can handle both harsh environments and perform many complex local customised tasks.
Features
- Standalone operation capability
- Can weather harsh environments
- Digital and analog inputs software configurable
- Built-in battery charging for SLA or Li-ion batteries
- IoT Smart Devices
- BLE Local Setup and Control
- WLAN/LAN Remote Connection
- 4G Capable
- Modular Configuration Using Expansion Cards and Remote IO
- Sensor Monitoring
Remote IO
The Remote IO supports onboard 8 analog/digital inputs, 2 relay outputs and 3 O/C outputs and 1 onboard door without any expansion cards. In addition, it has a built-in battery charger, Ethernet port, and 2 OSDP ports.
Features
- Can Weather Harsh Environments
- Digital, Analog Inputs and Card Readers Software Configurable
- Auxiliary Power Supply
- Built-in Battery
- Expansion Operation Capability
- Supports Ethernet and RS485
- Modular Configuration using Expansion Cards and Remote S1000s
- Sensor Monitoring

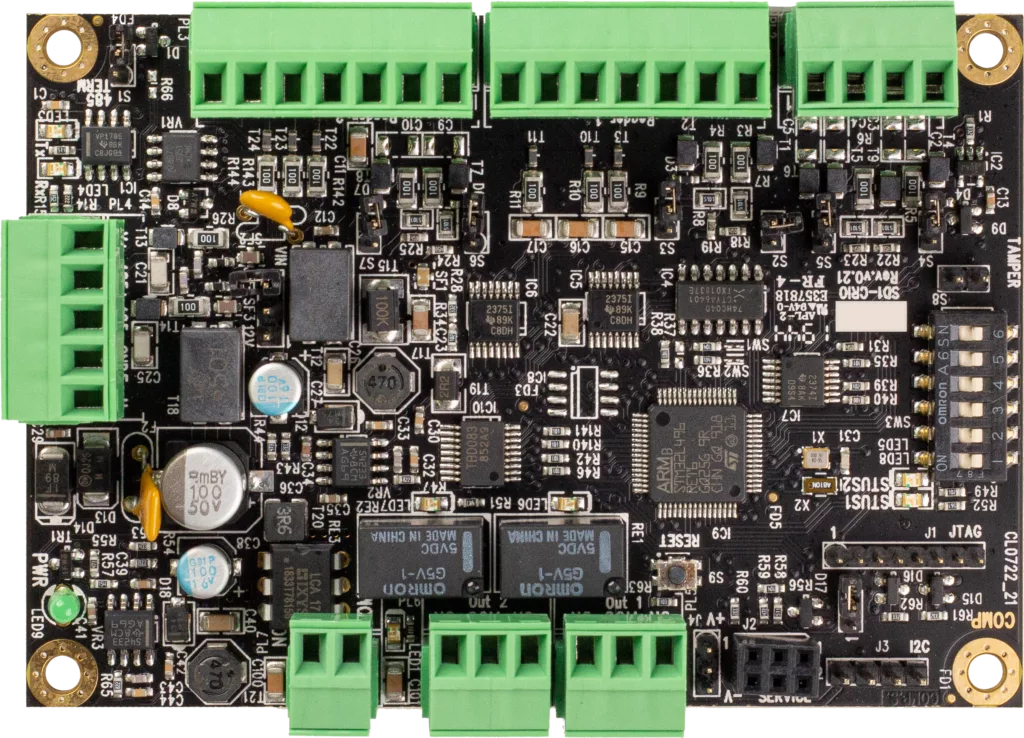

Card Reader Interface Board
The Card Reader Interface Board or 2-Door Controller is connected via the encrypted OSDP bus. Each OSDP bus can connect up to 16 2-Door Controllers, expanding the S1000 card access capabilities up to 16 doors or 32 readers.
The board has built-in dual Wiegand with LEDs and buzzer connections, 2 normal relays, and 1 solid-state relay, providing unlimited strike activation. There are 2 digital inputs. Each input is configurable to perform multiple functions, such as door contact, egress, and break glass with the same wiring.
Features
- Supports In/Out Reader
- Dual Wiegand Support
- Offline Mode
- Solid State Relay
- Encrypted OSDP
- Digital and Analog Inputs Software Configurable

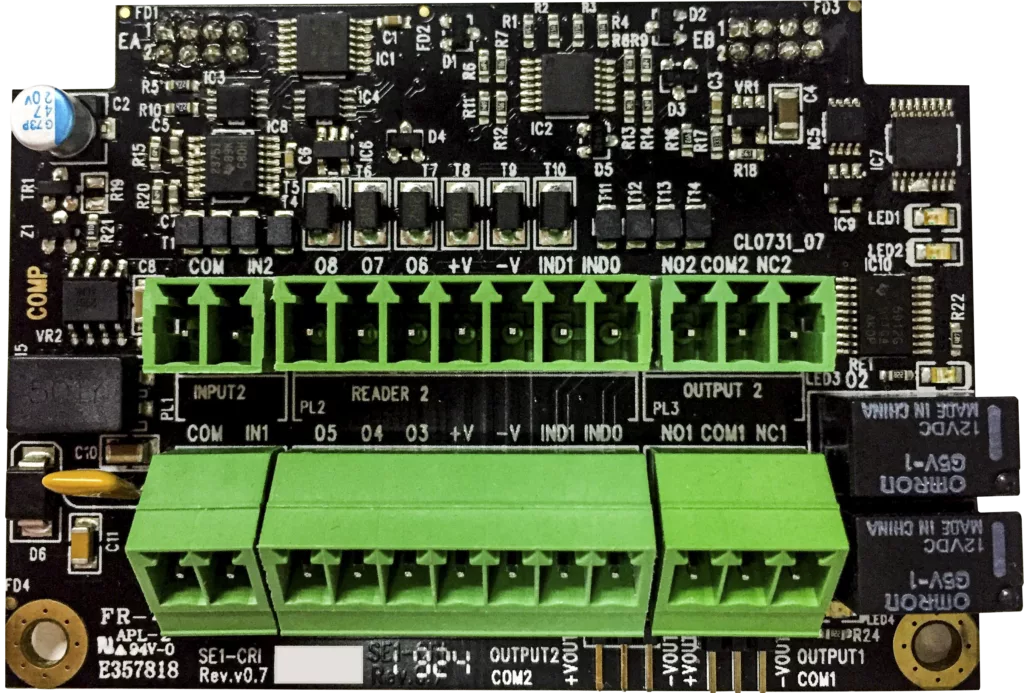

Card Reader Interface Card
The Card Reader Interface Expansion Card provides additional control of up to 2 doors. It includes built-in dual Wiegand reader support for IN/OUT readers on the door and has 2 relay outputs. There is also 2 additional digital or analog inputs which are software configurable and can be used for break glass and door contact functions. Wiegand inputs can be software programmed to have a pullup resistor for situations where the Wiegand inputs are driven by a voltage.
Features
- Supports In/Out Reader
- Dual Wiegand Support
- Intelligent Door Contact and Egress Monitoring
- Auto card Detection on S1000
- Hot-swappable
- Digital and Analog Inputs Software Configurable

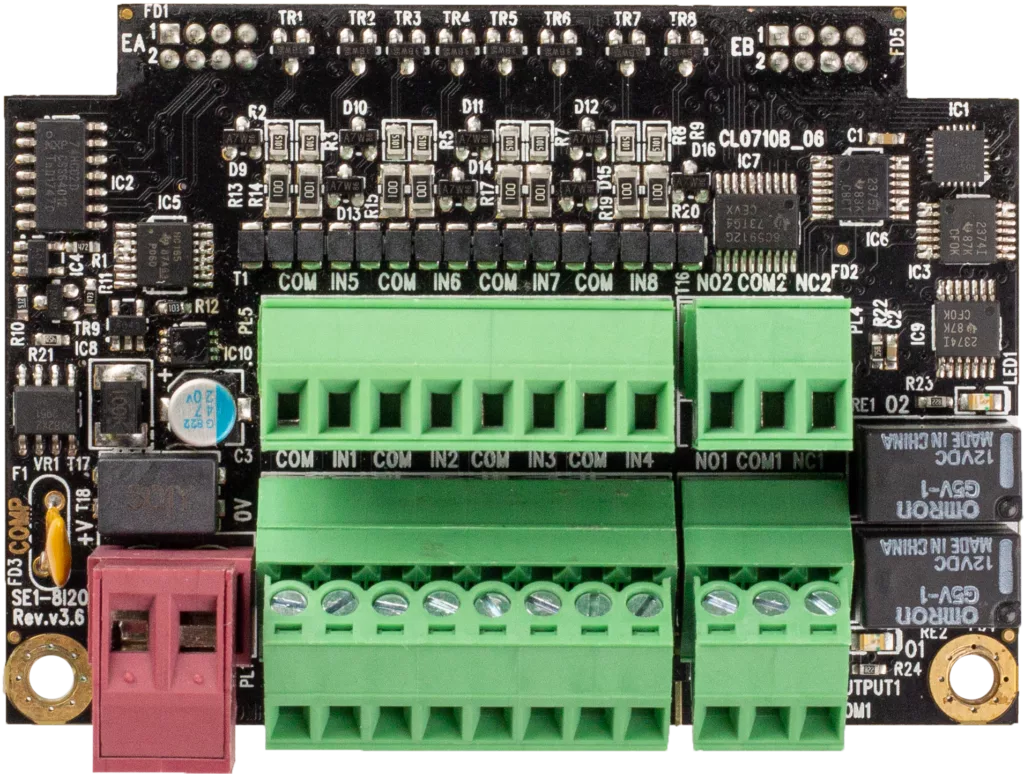

IO Expansion Card
The 8 Input 2 Output Expansion Card provides easy expansion for an S1000 Controller. An additional 8 analog or digital inputs and 2 relay outputs can be added to the S1000 Controller baseboard. Up to 3 of these expansion cards can be installed on an S1000 Controller, expanding the input and output capacity of an S1000 to 32 inputs and 11 outputs.
Features
- 8 Analog or Digital Inputs Software Programmable
- 2 Relay Outputs
- Auxiliary Power Supply Output
- Auto Card Detection on S1000
- Multi-state Monitoring of Digital Inputs

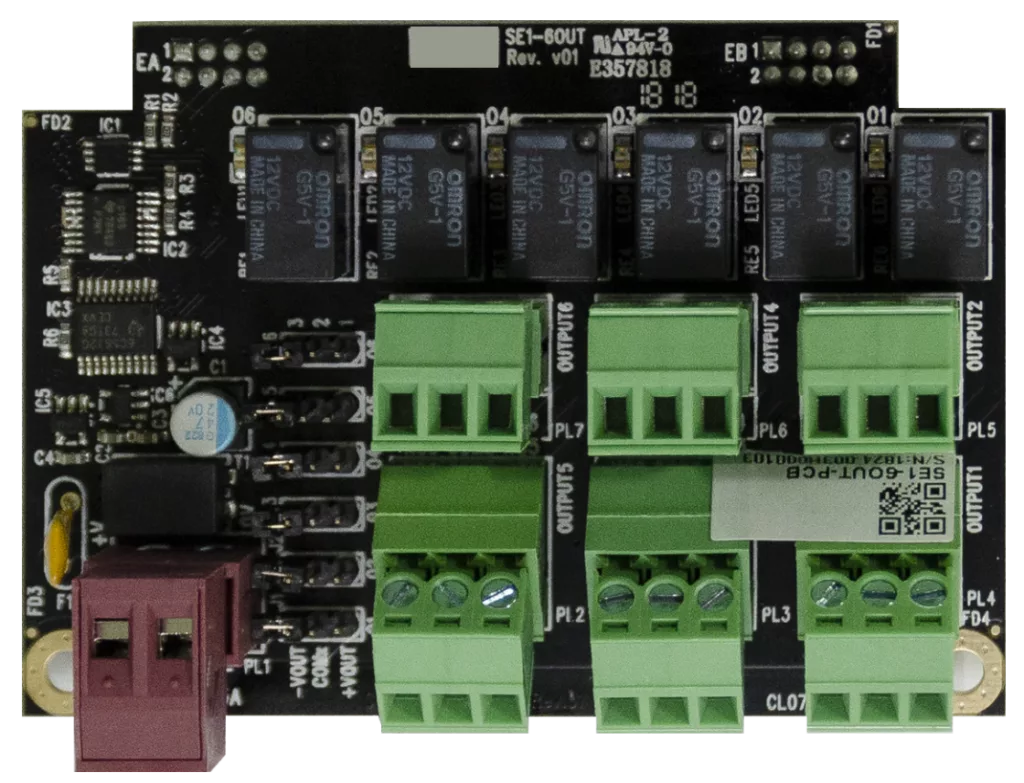

6 Output Expansion Card
The 6 Output Expansion Card provides an additional 6 dry contact relays, all with N/O and N/C terminals available. Up to 3 of these expansion cards can be installed on an S1000 Controller, expanding its output capacity to 20 relay outputs and 3 O/C outputs.
Features
- 6 Relay Outputs
- N/O and N/C Contacts
- Auxiliary Power Supply Output
- Auto card Detection on S1000
- Supply Selectable per Relay Common

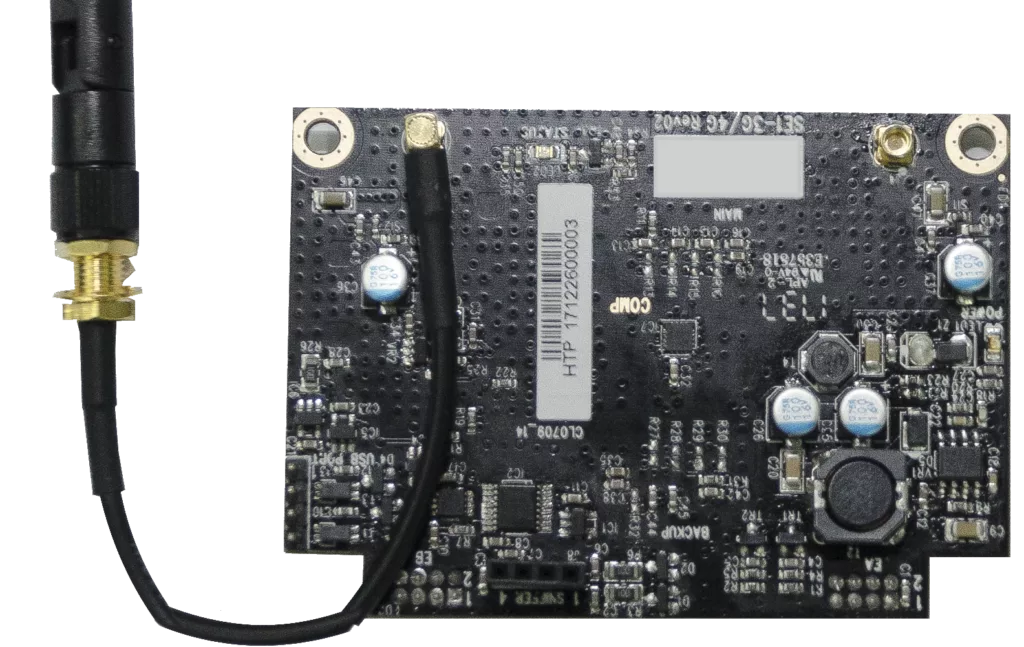

4G/WIFI Cellular Expansion Card
The Cellular and WiFi Expansion Card allows for 3 options:
- 2G / 3G / 4G operation
- WiFi support for both end node and hotspot operation
- Dual-mode Cat M1/NB1 (NB-IoT) capability
All models support dual SIM for additional redundancy. A wide range of modulation is supported.
Features
- Automatic fall-back from 4G to 3G to GPRS
- 2G GPRS, 3G and 4G Networks
- Dual Sim Auto Detecting Best Path
- Supports LTE-CATM1 and NB-IoT Network Connectivity
- Auto card Detection on S1000
- Optional WiFi Hotspot or Device Mode
- Supports GPS Location

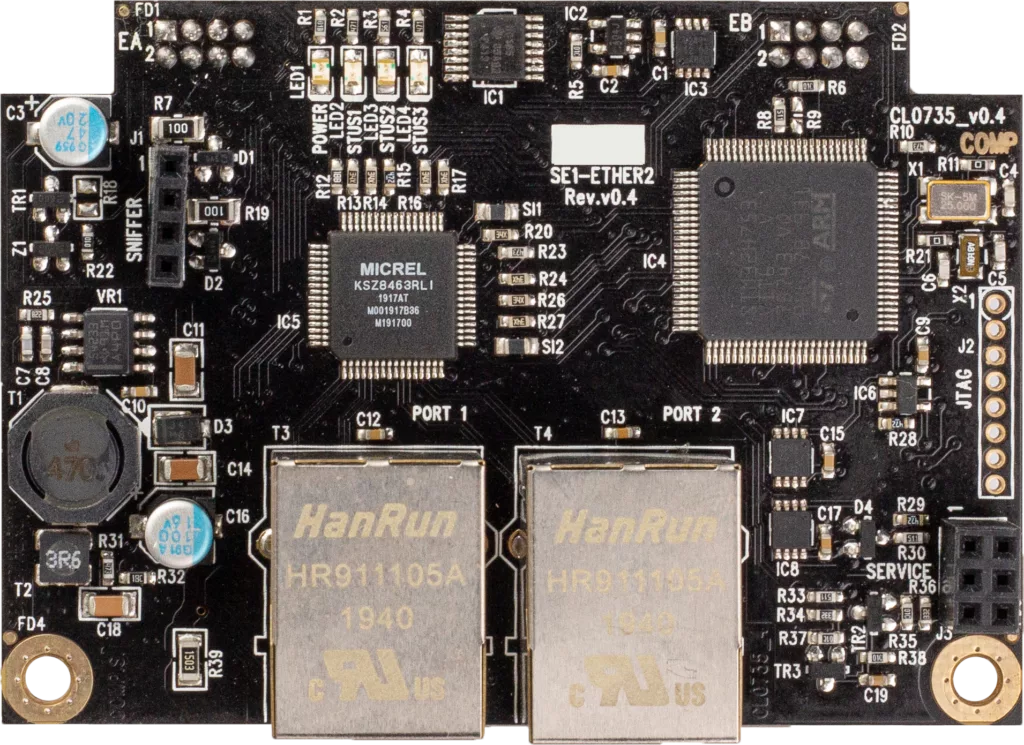

Dual Ethernet Expansion Card
The Dual Ethernet Expansion Card provides additional Ethernet ports for the S1000 Controller using any of its 3 expansion slots.
Features
- 10/100 TCP/IP Ethernet Port
- Supports redundancy for S1000 to VIGIL CORE
- 2 Additional 10/100 Ethernet Ports
- Auto card Detection on S1000
- SSL/TLS Encryption Support

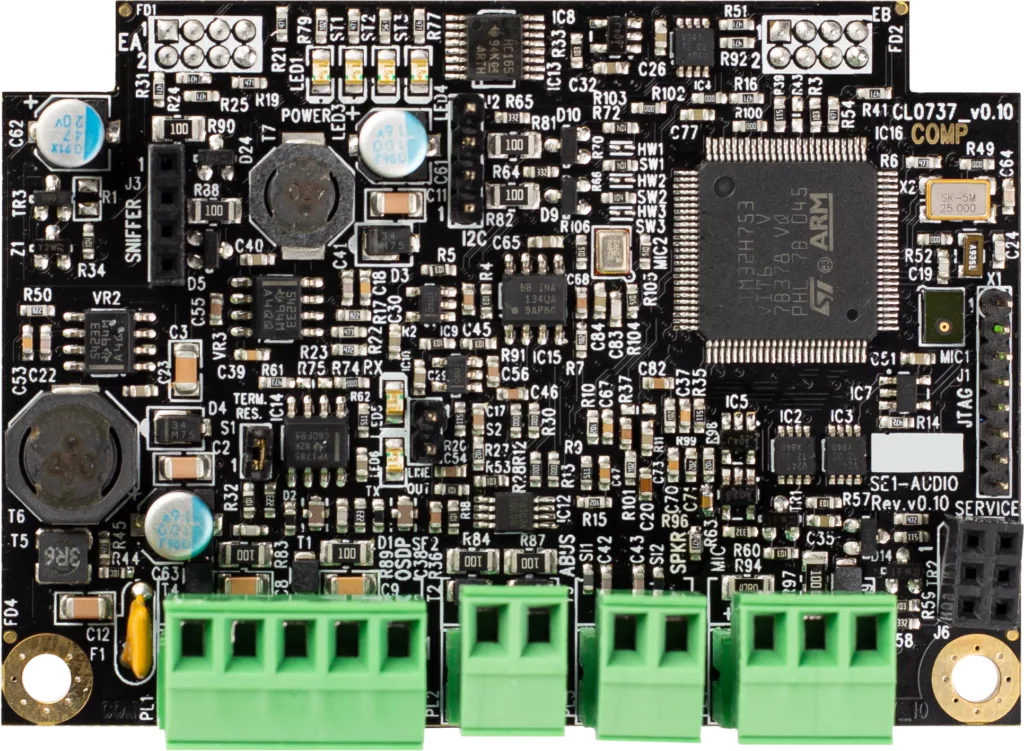

Audio Converter Card
The Audio Converter Expansion Card is the interface to the Audio 4 Board. The Audio Converter allows digital audio to be captured and communicated to PACOM VIGIL CORE. It can also function as a standalone module with its built-in digital microphone, amplified microphone input and speaker output.
Features
- Encrypted VOIP Data over IP Network
- Local Audio Capture to SDCard Optional
- Auto card Detection on S1000
- Digital Audio Converter

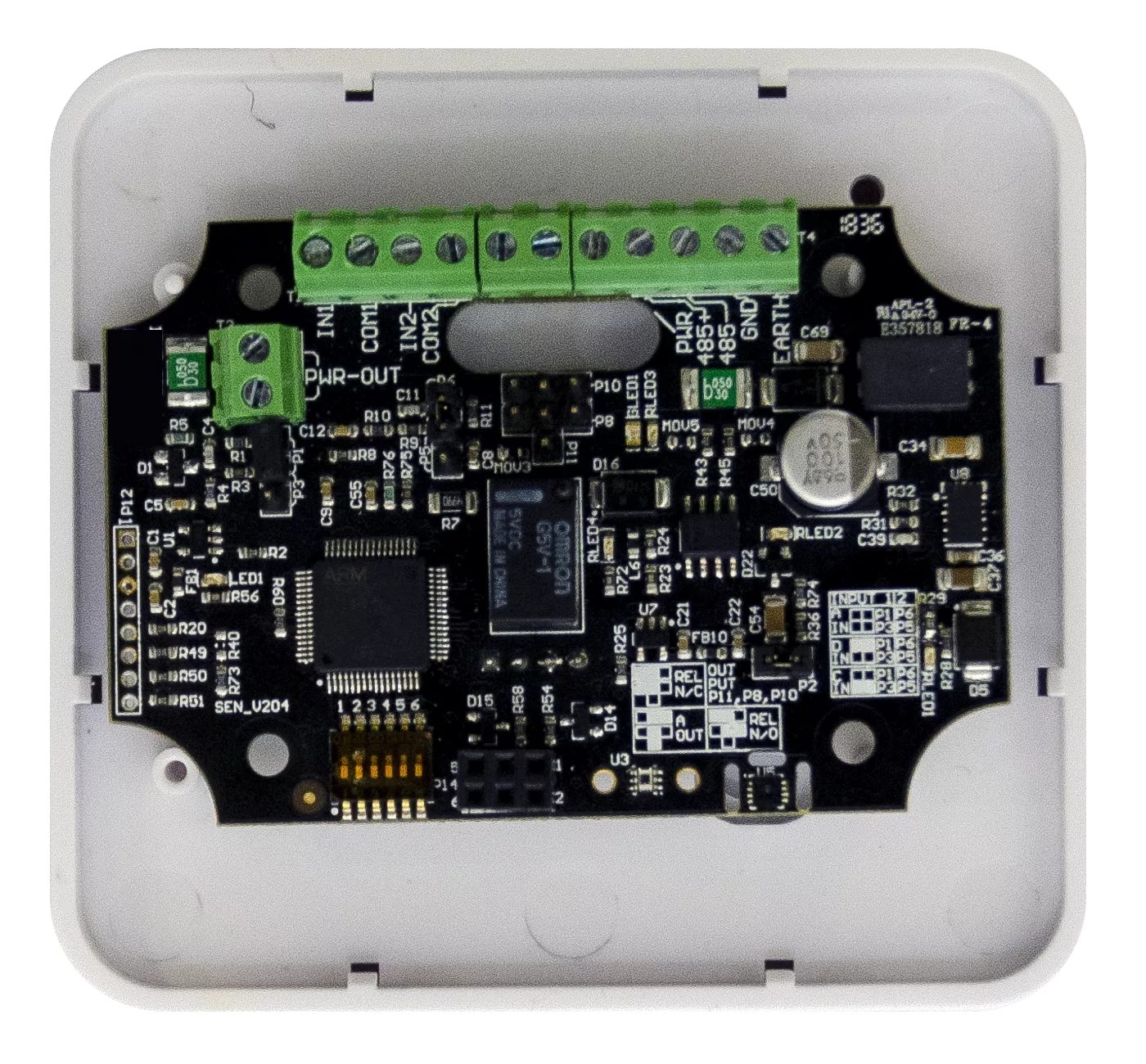

Sensor Remote Device
The Sensor Remote Device provides analog sensing information that can be collected, used to make local decisions, and then logged in PACOM VIGIL CORE. It runs on OSDP communication. Up to 16 devices can be connected to an S1000 Controller.
The Sensor reduces the need for service trips, resulting in significant cost savings, especially for large multi-site environments. The Sensor improves operational efficiency and ensures optimal performance in facilities like data centers and financial institutions.
Features
- Temperature and Humidity Sensors
- 2 Analog or Digital Inputs Software Programmable
- Supports OSDP (up to 1000m)
- Light and Movement Detector
- 1 Relay Output or Analog Output Software Programmable
- Auxiliary Power Supply Output

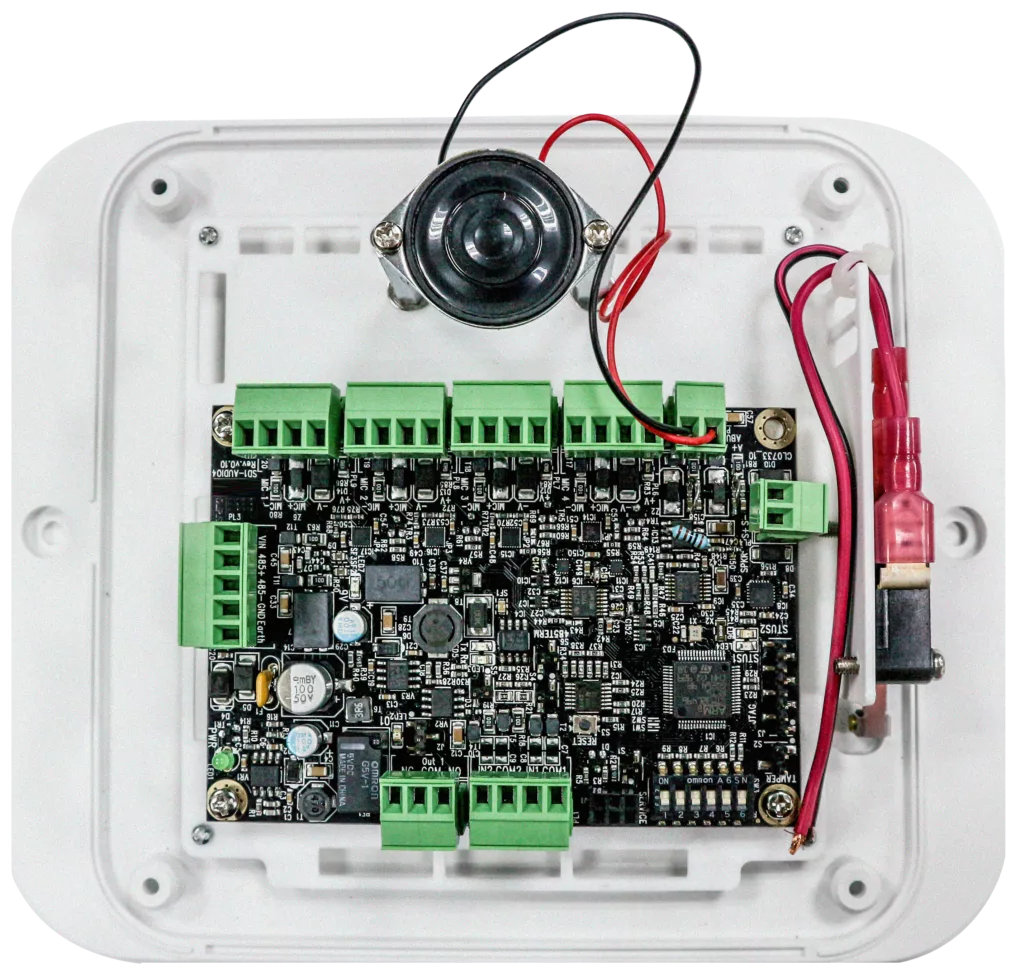

Audio Listen In Module
The PACOM Audio Module offers a complete audio solution for your needs; with the use of the Audio 4 Board and the Audio Converter Expansion Card.
The Audio 4 Board is connected via the encrypted OSDP bus to the S1000 Controller. Each board connects up to 4 analog microphones and 1 speaker. Interfacing with the Audio Converter Expansion Card, digital audio can be captured and communicated to PACOM VIGIL CORE. Multiple Audio 4 Boards can be added to the S1000 Controller, allowing up to a maximum of 16 audio devices to be connected to each controller.
Features
- Encrypted VOIP Data Over IP Network
- Digital Audio Converter
- Speaker support
- Microphone Integration
Solution Overview
PACOM systems are designed in the knowledge that, when it comes to the protection of critical staff and assets, reliable and consistent performance is an imperative.
PACOM uses the latest hardware and software to integrate, manage and deliver real-time information from sensors, alarms and cameras to provide world class security management.
Download the Solutions Overview Brochure for more information.
